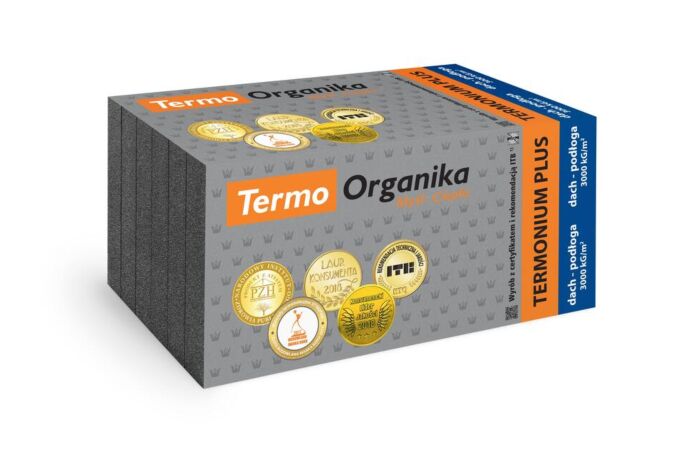

Polystyrene boards 5 cm 031 EPS 100 roof-floor TERMONIUM PLUS TERMO ORGANIKA

Poolystyrene roof-floor TERMONIUM PLUS TERMO ORGANIKA are silver-gray boards with the best thermal insulation parameters. They are manufactured on the basis of an innovative raw material containing e.g. graphite, which improves the insulating properties of styroboards.

The low thermal conductivity coefficient λ 0.031 provides excellent protection against heat loss, which significantly affects the costs associated with heating the building.

Application of styrofoam roof-floor TERMONIUM PLUS:

• floors on the ground in residential,
• public and industrial buildings with normal loads,
• floors in underfloor heating systems,
• floors on all types of ceilings with a rigid structure,
• floors of public buildings,
• solid flat roofs,
• external ceilings,
• flat roofs with a flexible structure (trapezoidal sheet metal),
• terraces,
• balconies.

Properties of TERMONIUM PLUS roof-floor polystyrene boards:

thickness T (2): ± 2 mm,

length L (2): ± 2 mm,

width W (2): ± 2 mm,

rectangularity S (5): ± 5 mm/m,

flatness P (10): 10 mm,

bending strength level BS150: ≥ 150 kPa,

compressive stress at 10% relative deformation CS (10) 100: ≥ 100 kPa,

class of dimensional stability in constant,

normal laboratory conditions DS (N) 2: ± 0.2%, level of dimensional stability in specific temperature and humidity conditions (temp. 70°C, 48 h) DS (70,-) 2: ≤ 2%,

declared thermal conductivity coefficient λ decl. at temp. 10°C: 0.031 W/(m*K),

fire reaction class: E.
